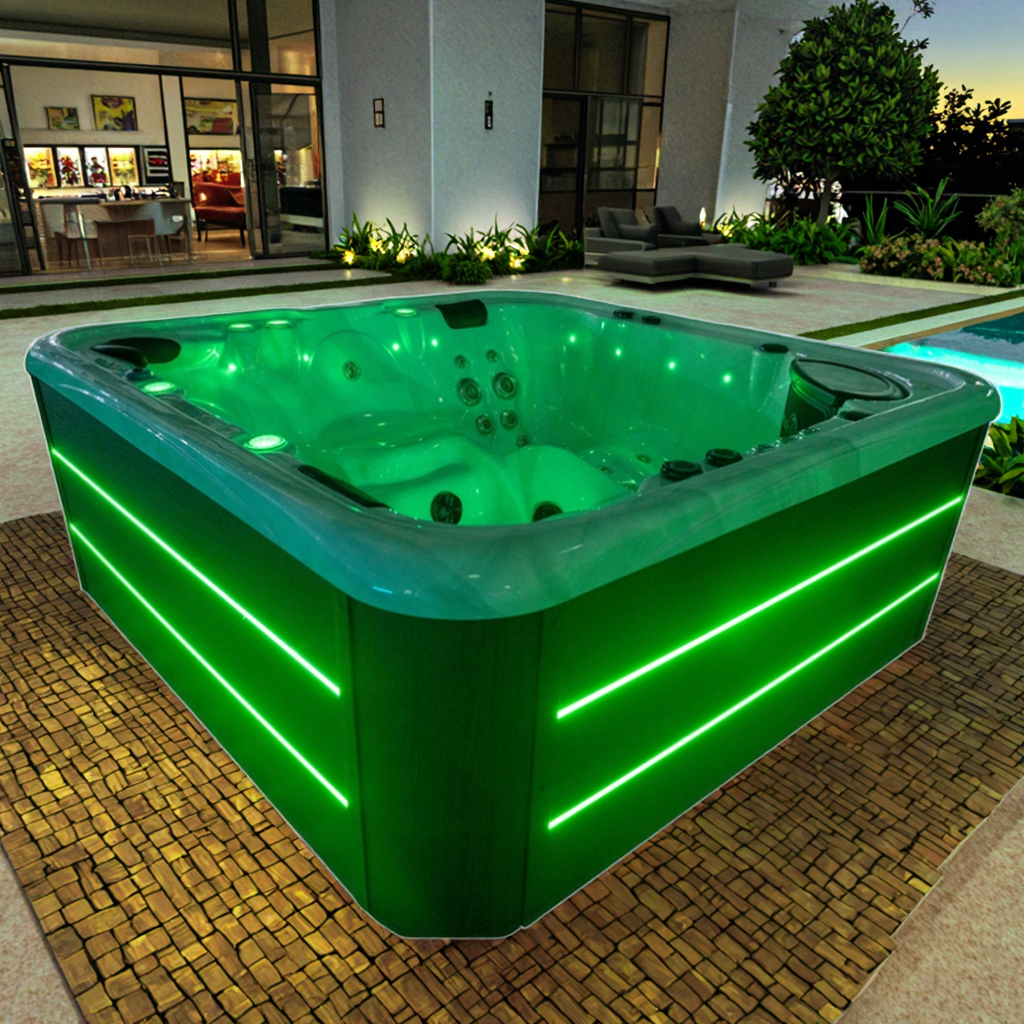

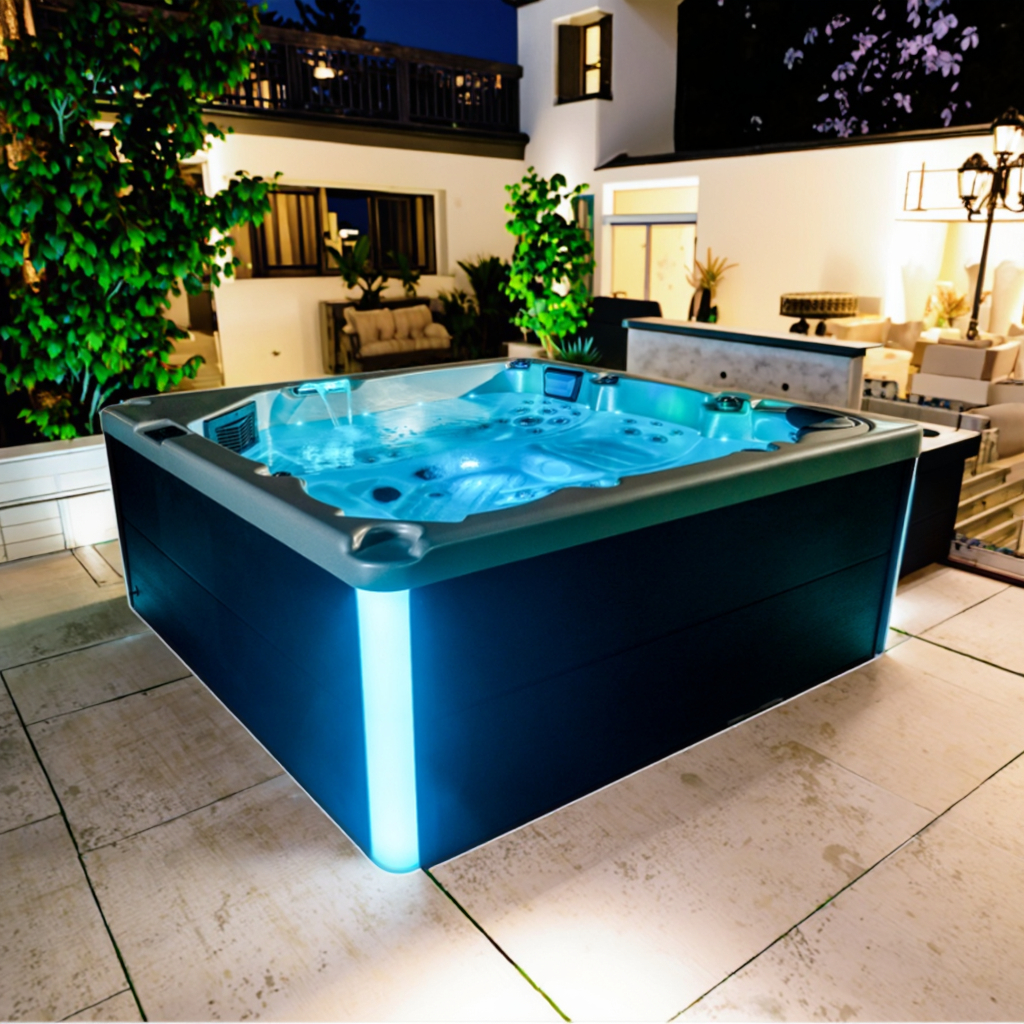

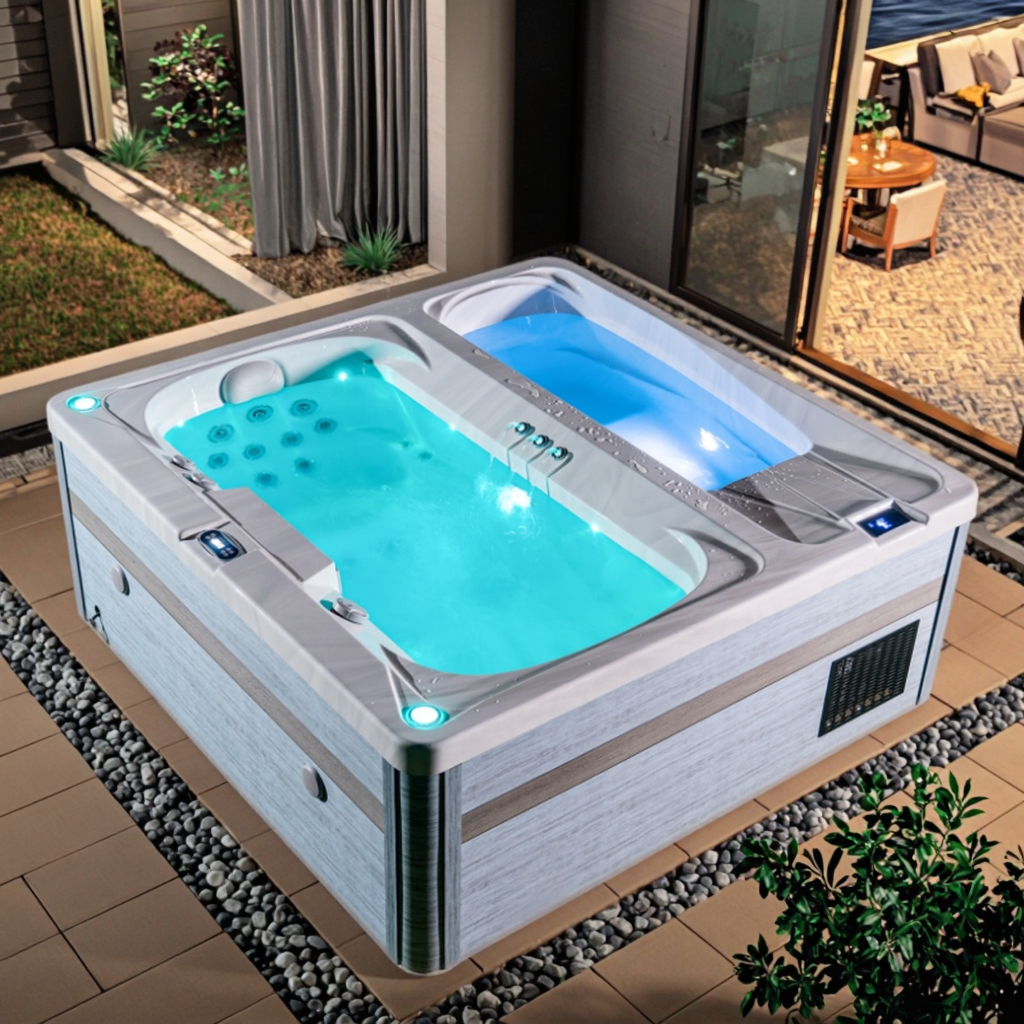

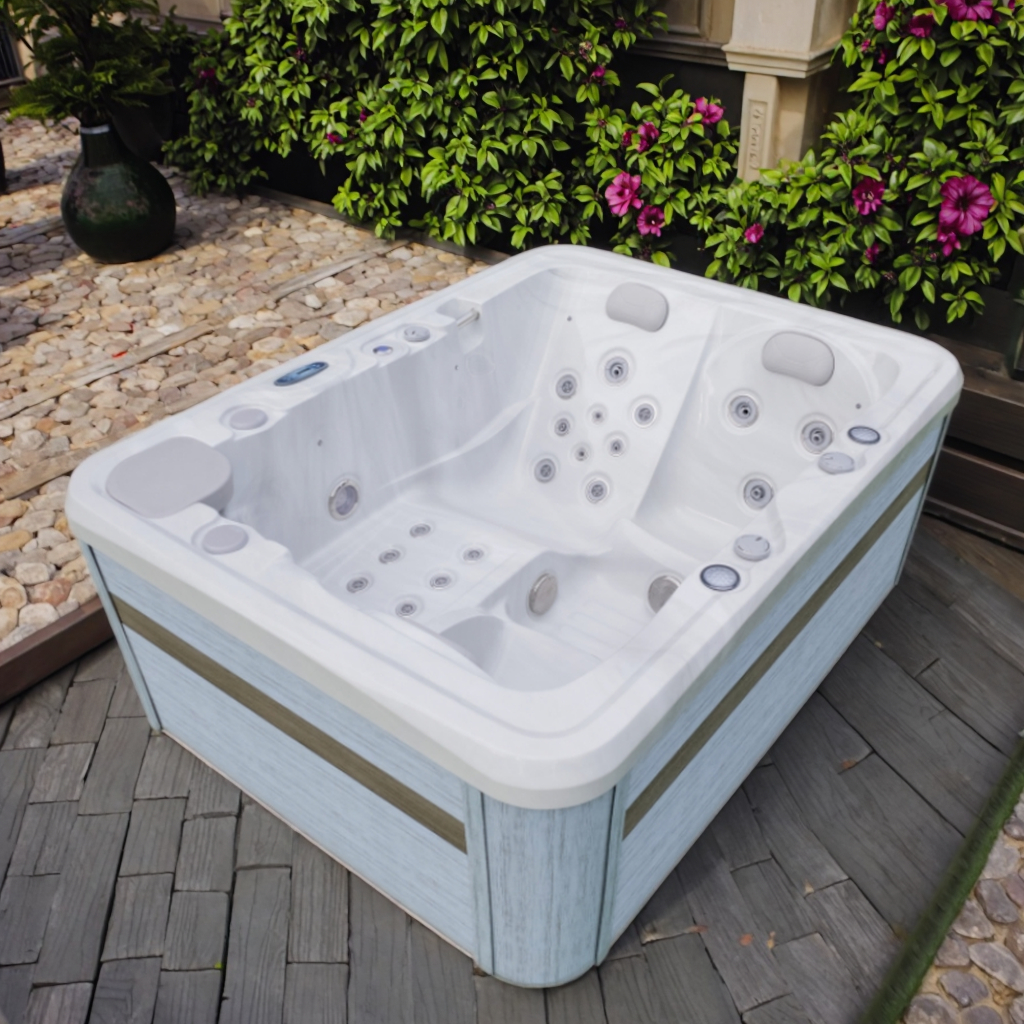

Multi-person hot tubs are popular home amenities, especially outdoor installations, often used for relaxation, socializing, and stress relief. However, installing a spa hot tub requires more than just choosing a good location; it requires a sturdy foundation to support the tub's weight.
Concrete slabs, a common foundation option, must be strong and thick enough to support the weight of a multi-person hot tub. Understanding the required slab thickness is crucial for ensuring safety and the longevity of the tub. So, how thick should a concrete slab be to support a multi-person hot tub?
To answer this question scientifically, we need to consider several factors, including the weight of the spa hot tub, the loads it will experience during use, the material properties of the concrete, and other environmental conditions. This article will analyze these factors in detail and provide guidance to ensure your concrete foundation provides reliable support for a multi-person hot tub.
Why is foundation thickness crucial for spa hot tub installation?
When installing a foundation for a multi-person hot tub, it's important to first understand the weight requirements it places on the foundation. A spa hot tub is already quite heavy when empty, and the weight of water and users increases the total load significantly. If the foundation is not strong enough, problems such as sinking and cracking may occur, ultimately causing the tub to become unbalanced or even damaged.
Major Components of Weight Support
• Empty Tub Weight: Most 4- to 6-person spa hot tubs weigh between 300 and 500 kg, depending on the materials used and size.
• Water Weight: Each liter of water weighs approximately 1 kg. A typical spa hot tub can hold 1,000 to 1,500 liters of water, which translates to a water weight of approximately 1,000 to 1,500 kg.
• User Weight: Multi-person tubs are typically designed for 4 to 6 people. If each person weighs an average of 75 kg, the total additional weight reaches 300 to 450 kg.
When these weights are added together, the total weight of a full spa hot tub with several people can reach 2,000 to 3,000 kg or more. Clearly, the foundation must be strong enough to support such a significant weight.
What factors influence the thickness of the concrete slab?
The thickness of a concrete slab is not fixed and is influenced by many factors. The following are several key factors that determine concrete slab thickness.
1. Soil Conditions
Soil types and bearing capacities vary across regions. Hard soils, such as sandy or clayey, can bear more weight, while softer soils or those containing a lot of organic matter may sink. To determine the appropriate thickness for a concrete slab, first assess the soil at the installation site.
2. Bathtub Size and Weight
The size and number of people in a multi-person hot tub directly impact the concrete foundation requirements. Larger tubs require thicker foundations. For example, a six-person hot tub requires a thicker foundation than a four-person one.
3. Environmental and Climate Conditions
Environmental conditions, such as extremely cold climates, can place additional stress on foundations. In cold climates, the ground can frost heave, which can cause foundation movement and damage. Therefore, in these areas, thickening the concrete foundation or adding appropriate frost protection underneath is often recommended.
4. Concrete Strength
Concrete quality is equally important, with different grades of concrete having varying compressive strengths. Concrete strength typically used in residential and outdoor structures ranges from 25 MPa (megapascals) to 30 MPa. If the concrete strength is higher, the thickness can be reduced, but it still needs to be able to support the combined weight of the tub and load.
What is the recommended concrete slab thickness?
Based on industry standards and experience, the following range of recommended concrete slab thicknesses is recommended for multi-person hot tubs:
1. Standard Thickness Requirements
Generally speaking, the concrete slab should be at least 10 cm (4 inches) thick. For smaller spa hot tubs (such as those accommodating two to four people), this thickness is usually sufficient, provided the concrete strength is high enough and the soil has good bearing capacity.
2. Thickness Requirements for Larger Tubs
For larger spa hot tubs, especially those accommodating six or more people, it is recommended to increase the concrete slab thickness to 15 cm (6 inches). This provides additional load-bearing capacity, preventing foundation damage or settlement issues caused by excessive weight.
3. Considerations for Heavy Structures
In extreme cases, such as very large custom spa hot tubs or bathtubs installed on soft soil, the concrete slab may need to be 20 cm (8 in) or thicker. In these cases, concrete reinforcement is particularly important, and mesh steel may be added during pouring to increase load-bearing capacity.
How to Reinforce Concrete?
To ensure the strength and durability of concrete foundations, several reinforcement measures can be implemented during construction.
1. Mesh Steel Reinforcement: Incorporating mesh steel into concrete is a common reinforcement method. Mesh steel effectively prevents cracks in the concrete slab due to temperature fluctuations or load variations. Embedding mesh steel during concrete pouring increases the tensile strength of the overall structure, especially effective in coping with frost heave and thermal expansion and contraction.
2. Laying a Gravel Layer: Before pouring concrete, laying a 10 to 15 cm thick layer of gravel helps drain water and prevent moisture from accumulating beneath the concrete slab, which could cause the concrete foundation to become damp or sink. The gravel layer distributes the load and ensures the long-term stability of the concrete foundation.
3. Add a plastic film moisture barrier: Placing a plastic film between the gravel layer and the concrete acts as a moisture barrier, preventing groundwater from seeping into the concrete slab. This is crucial for extending the life of the foundation and maintaining the strength of the concrete.
4. Use controlled joints: To reduce concrete cracking caused by temperature fluctuations, appropriate controlled joints can be placed in the concrete slab. These joints divide the concrete into smaller pieces, allowing for slight movement due to thermal expansion and contraction, thus preventing uncontrolled cracking.
What precautions should be taken during foundation installation?
During the construction process, ensuring the quality and stability of the concrete slab is crucial. Here are some key construction steps and precautions:
1. Site Preparation: Before pouring concrete, ensure the installation area is clean and level. Any uneven ground or debris such as gravel or tree roots may affect the balance and stability of the foundation.
2. Concrete Pouring: Concrete should be poured in an even thickness, ensuring there are no weak spots. Concrete should completely fill the mold and be smoothed with a leveling tool after pouring. Afterward, the concrete needs to be properly cured, typically taking several days to a week, depending on climatic conditions.
3. Concrete Curing: The concrete curing period is crucial, especially during the initial 24 to 48 hours, when it should be protected from external forces and moisture. If the concrete is exposed to freezing or moisture during the curing period, its ultimate strength may be affected. Typically, at the end of the curing period, the concrete reaches over 80% of its design strength.
